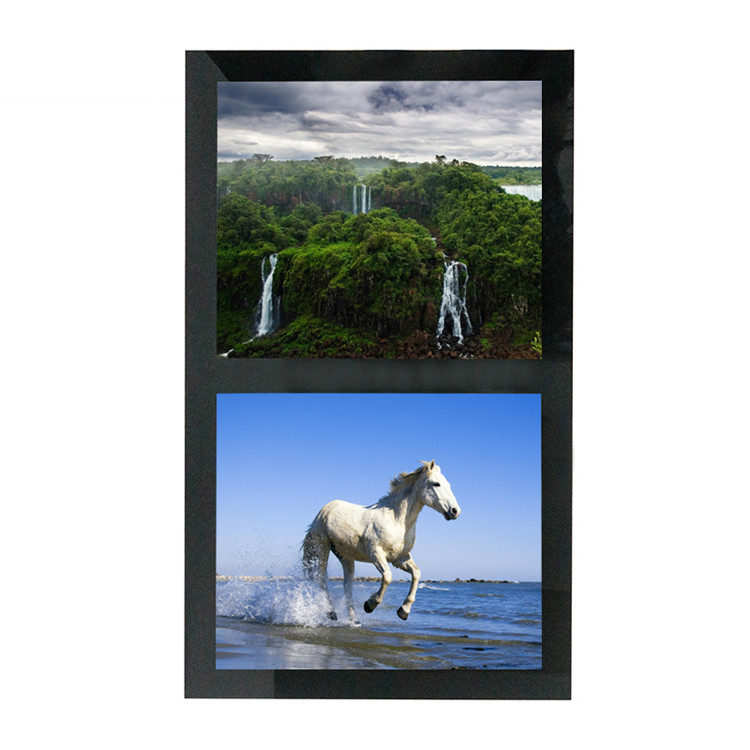

    IP65 Waterproof Capacitive Touch Screen Display 19 Inch High Brightness 1000nits

    Ask Lasest Price
    Brand Name : hainengzhichuang
    Model Number : custom
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    IP65 Waterproof Capacitive Touch Screen Display 19 Inch High Brightness 1000nits

    19 Inch Outdoor Waterproof IP65 PCAP Dual Screen Monitor Flexible Ad Display PCAP Capacitive TFT LCD Touch Screen All In


    Description:


    - Exceptional quality and highly engineered industrial monitors
    - Optional touchscreens like resistive, PCAP
    - All steel construction designed for harsh and industrial environments
    - True flat surface, easy to clean
    - Easy-to-install embedded/panel mounting with clamps
    - Robust design with aluminum NEMA 4/ IP65 front panel
    - High brightness 1000nits optical bonding optional
    - Long lasting product cycle for continuity thru all phases of project

    Specification:


    Product Name
    19'' Capacitive Touch Monitor
    Product Model
    ZD-190MT3C-V1
    Screen Size
    19 inch
    Active Area
    376.32(H)×301.06(V)mm
    Pixels H X V
    1280(H)×1024(V)
    Pixel Pitch
    0.294×0.294mm
    Support Color
    16.7M
    Brightness
    410 ±30 cd/m2
    Contrast Ratio
    1000:1(TYP)
    Response Time
    10ms(Raising＋Falling)
    Viewing Angle
    85(Left)/85(Right)/80(Upper)/80(Down)
    Input Signals
    VGA＋DVI
    Touch Screen
    Capacitve Touch Screen
    Operating Temperature & Humidity
    -25 ~ ＋80℃,10~90 %RH
    Sortage Temperature & Humidity
    -30 ~ ＋85℃,10~90 %RH
    Power Supply
    DC12V／3~4A
    Typical Power Consumption
    ＜30W
    MTBF
    50000 Hrs(25℃)
    IP Front Rated
    IP65
    Installation Method
    75×75mm VESA；Left+Right+Upper+Down M3 Reserve hole
    Application

    Telecommunication Devices

    Telephone, Interphone, watch, radio, etc.

    Home Appliances

    Washing Machine, Refrigerator, Home Integrator

    Industrial Control

    Homotaxial Numerically-controlled machine tool

    Instrument and Apparatus

    Tester, Medical instruments

    Vehical-mounted Digital

    MP3, MP4 and vehical-mounted air conditioner

    Mining

    Mine's lamp charger, gas tester

    Marine

    Salinity tester


    IP65 Waterproof Capacitive Touch Screen Display 19 Inch High Brightness 1000nits


    Products quality assurance

    (1)High-quality raw material supplier :

    after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.

    (2)Other materials:
    such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
    (3)Strict quality control:
    Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
    Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
    A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.

    The terms of Shipping:


    We will ship the items within 5 working days after the payment confirmed.
    We can ship to you by DHL/FedEx/UPS/TNT/EMS. Please contact us directly and we will use your preferred ways.For the Countries & Regions where EMS cannot deliver,please choose other shipping ways.
    We are not responsible for any accidents,delays or other issues caused by the forwarder.


    Our Services:

    programe evsluation
    1 to 2 morking days
    Drawings
    2 to 3 working days
    Customized products
    3 to 4 weeks(after drawings confirmed)
    Mass Production delivery
    4 to 6 weeks
    Software debugging
    Capacity
    100K per month(10.1 inches as a reference)
    Process capability
    G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
    Technical support
    Engineers to provide door-to-door or remote access service within 24 hours
    Stable supply chain for at least 3 years guarantee
    One year warranty time for all of our products

    FAQ:


    1. Q: Do you accept OEM service?

    A: Yes,We can do OEM&ODM service and can customize products according to the drawings you supply.

    2. Q: What about the delivery time?

    A: Generally, the sample order is 7 to 15 days. While for OEM order or that with special requirement on configuration, then the leading time is 15-20 working days after all order details confirmed.

    3. Q: How could I get samples?

    A: Free sample is not available. If you need to order sample for checking-up, then both the sample and shipping cost should be charged by you, we will deliver them to you after receiving your payment.

    4. Q: What's your payment term?

    A: We always accept T/T and West Union payment with FOB, CIF or EXW price.

    5. Q: What kind of delivery method you always choose?

    A: DHL/FedEx/UPS/EMS is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by sea.

    6. Q: What's the after-sales service you can supply?

    A: Be free of 1 year warranty and lifetime maintenance service Any problems about the product we will give you professional response within 24 hours.

    7. Q: What's the MOQ of your products?

    A: We have no limit for MOQ, so you can even buy only 1 piece
