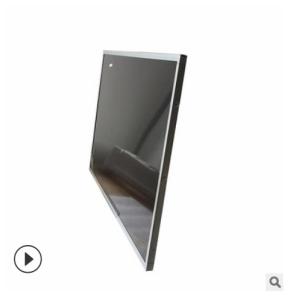

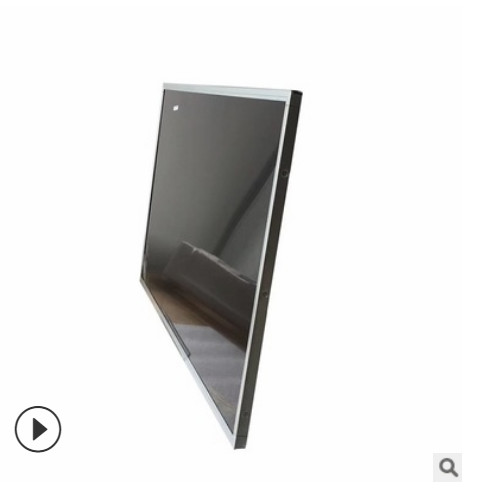

4k UHD 23.8 inch lcd display panel 3840x2160 display 30 pin edp
connector ips lcd panel for desktop advertising screen
Description:
4k UHD 23.8 inch lcd display panel 3840x2160 display 30 pin edp
connector ips lcd panel for desktop advertising screen
Specification:
| General Features |
| Screen Size | 23.8 inch | Screen Type | a-Si TFT-LCD , LCM |
| Pixel Number | 3840(RGB)×2160 , UHD | Arrangement | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm | Outline Dim. | 545(W)×323.4(H)×12.5(D) mm |
| Bezel Area | 530.2(W)×299.6(H) mm | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Luminance | 300 cd/m² (Typ.) | Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Work Mode | ADS, Normally Black, Transmissive |
| Good View at | Symmetry | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Color Depth | 1.07B 99% sRGB | Backlight | 14S4P WLED , 30K hours , Without Driver |
| Weight | 2.30Kgs (Typ.) | Used for | Desktop Monitior, TV Screen, Outdoor Adversiting Screen |
| Frame Rate | 60Hz | Touch Screen | Optional |
| Interface Type | eDP (4 Lanes) , 30 pins , Connector |
| Power Supply | 10.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Application
1. Intercom systems: Video door phone, video peephole viewer, phone
etc.
2.Safety and Security: Monitors, touch Pcs.
3. Consumer Electrics: Advertising players, TVs, ATMs etc.
4. Telecommunication Devices: Telephone, Interphone, watch, radio,
etc.
5. Home Appliances: Washing Machine, Refrigerator, Home Integrator
,digital photo frame.
6. Industrial Control: Homostadial Numerically-controlled machine
tool.
7. Instrument and Apparatus: Tester, Medical instruments.
8. Vehicle-mounted Digital: MP3, MP4 and vehicle-mounted air
conditioner.
9. Mining: Mine's lamp charger, gas tester.
10. Marine: Salinity tester.
Products quality assurance
(1) High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3) Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==>
production online inspection ==>Q.C inspection==>aging test 4
hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection,
aging test and OQC inspection, etc.
The terms of Shipping:
We will ship the items within 5 working days after the payment
confirmed.
We can ship to you by DHL/FedEx/UPS/TNT/EMS. Please contact us directly and we will use your preferred
ways.For the Countries & Regions where EMS cannot deliver,please choose other shipping ways.
We are not responsible for any accidents,delays or other issues
caused by the forwarder.
Our Services:
1, Install the POS system for customer if in need.
2, Technical support any time
3, Service parts supplied in 3 years, 1 year as free for spare parts
4, Customer service and maintenance
5 . Repair replacement and compensation of faulty products
6, Consulting,collecting feedback and resolving problem and improving model
immediately
FAQ:
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard
products, if it’s not fit, we will do the necessary adjustment &
customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope
clarification → Fill TSD Requirement Form → Engineering analysis →
Cost→Evaluation → Customer confirmation → Providing drawing → Customer
confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small
quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
4~5 weeks for mass production (basing on the quantity and product)
